Central air conditioning outlet

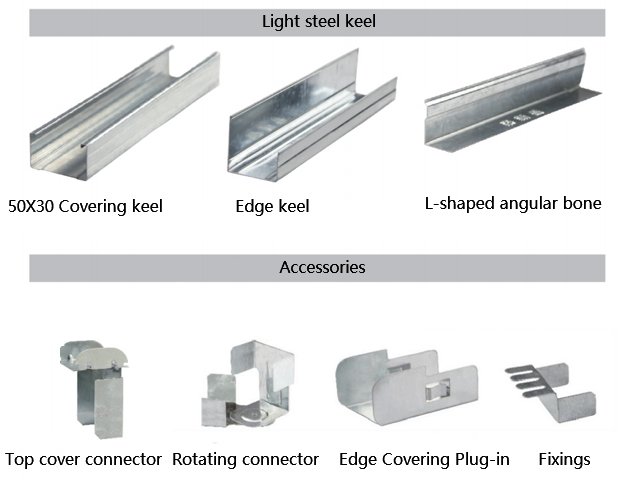

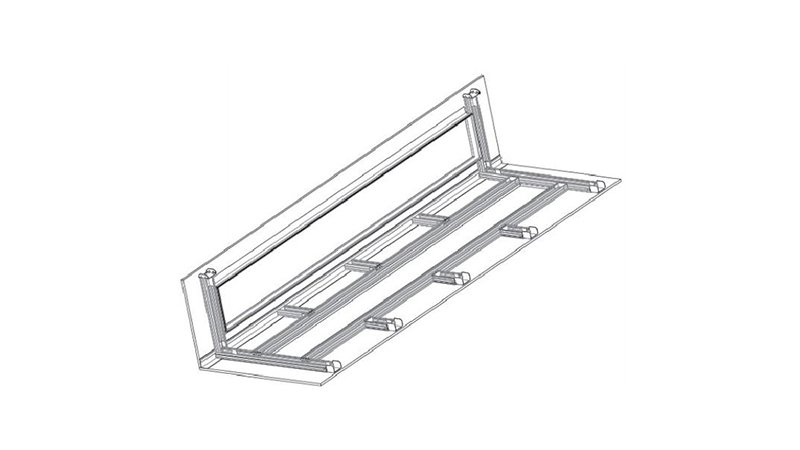

This combination is a straight edge ceiling without light trough. It is assembled by 50X30 covering keel, edge keel, L-shaped angle keel, edge covering plug-in, fixing parts, and leveling top and bottom parts. When the ceiling height is 110

This combination is a straight edge ceiling without a light trough. It is assembled from 50X30 covering keels, edge keels, curved light trough keels, edge covering plug-ins, fixings, and leveling top and bottom parts. When the ceiling height is 110

This combination is a circular ceiling without light troughs. It is assembled from 50X30 cladding keels, side keels, curved keels, side cladding plug-ins, fixings, and rotating connectors. The vertical support uses 50X30 cladding keels, and the top keels and shaping keels are both curved keels.

This combination is a circular ceiling with a light trough. It is assembled from 50X30 cladding keels, side keels, curved keels and curved light trough keels with side cladding plug-ins, fixings, rotating connectors and light trough support parts. The vertical support uses 50X30 cladding keels, and the top keel is a curved keel. The curved keel and curved light trough keel can be bent freely to produce various special-shaped ceilings, including round, oval, eggshell, etc.

The flat roof is assembled by 50X30 covering keels, side keels, matching side covering plug-ins, and top covering connectors. The flat roof can be divided into ordinary flat roof, flat roof first and side roof later, and side roof first and flat roof later.

The caisson ceiling is assembled by 50X30 covering keels, side keels, L-shaped corner keels, top covering connectors and side covering plug-ins.

This combination is a linear ceiling. It is assembled from 50X30 covering keels, side keels, L-shaped angle keels, side covering plug-ins, top covering connectors, linear lamp connectors, and leveling top and bottom parts. The vertical support uses the leveling top and bottom parts (110~180mm). Linear ceilings are divided into linear side ceilings and flat top linear ceilings.

This combination is a linear ceiling. It is assembled from 50X30 covering keels, side keels, L-shaped angle keels, side covering plug-ins, top covering connectors, linear lamp connectors, and leveling top and bottom parts. The vertical support uses the leveling top and bottom parts (110~180mm). Linear ceilings are divided into linear side ceilings and flat top linear ceilings.
